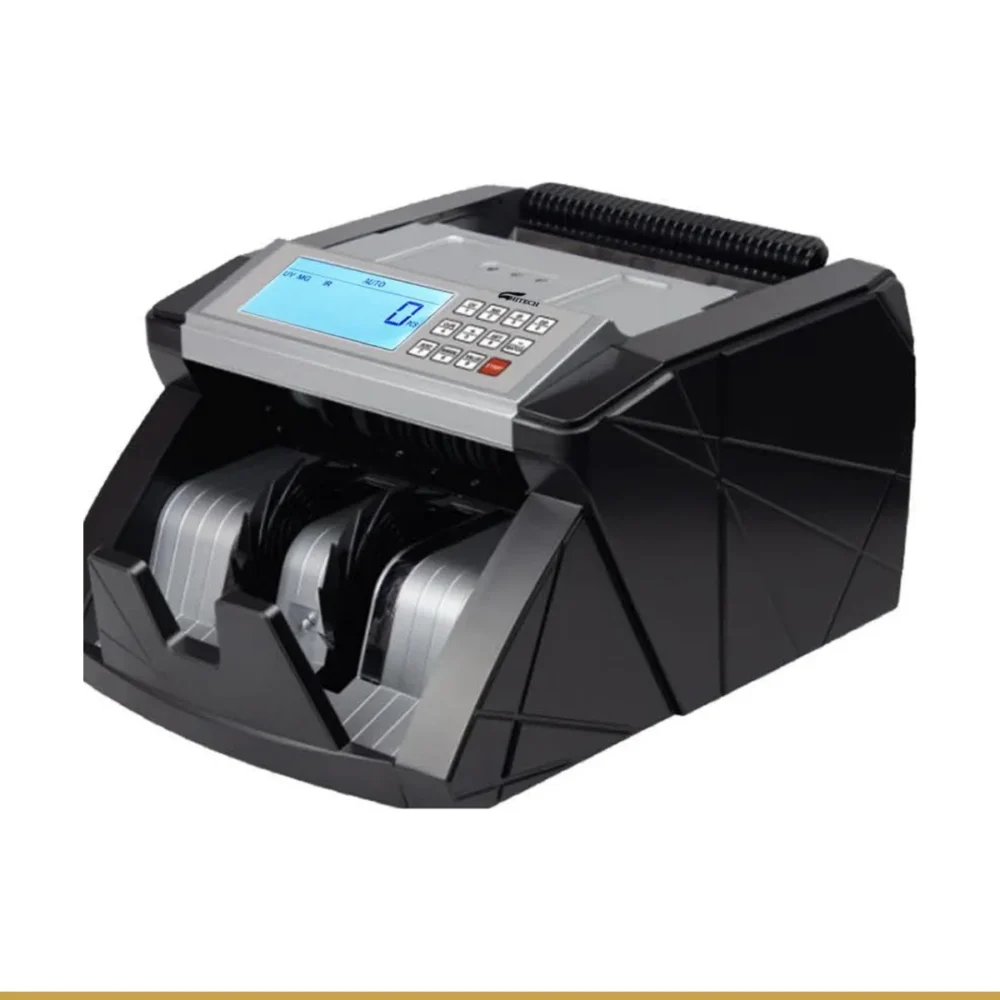

HITECH BC-5520 Single Value Bill Counter – 1

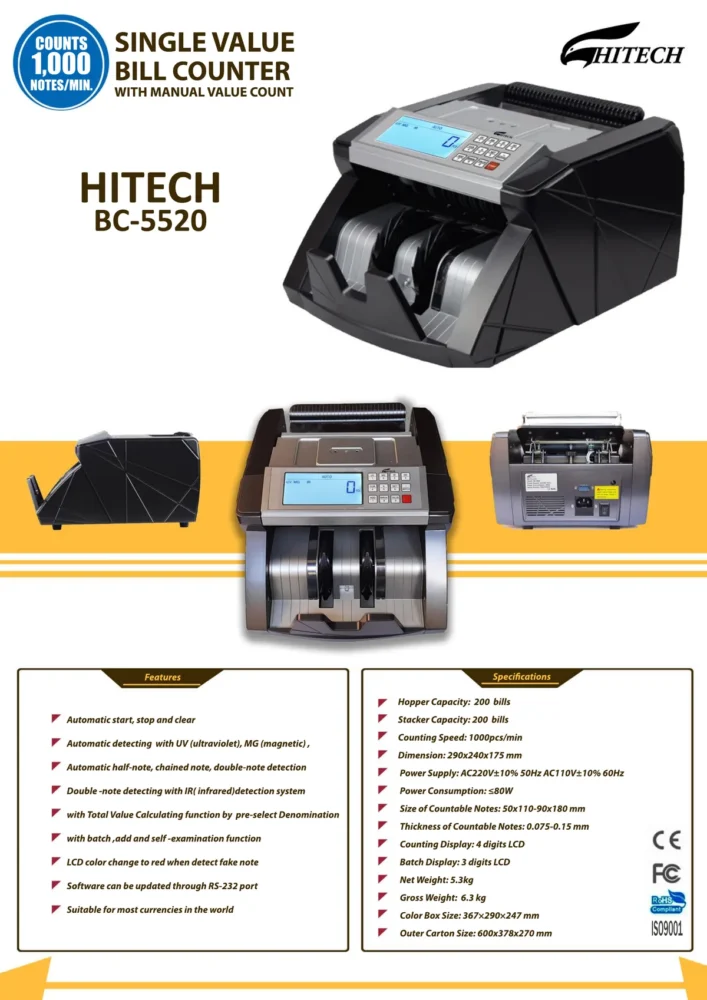

HITECH BC-5520 Single Value Bill Counter – 2
Brand: HITECH

HITECH BC-5520 Single Value Bill Counter

The HITECH BC-5520 is a budget-friendly single value bill counter for shops, restaurants, offices and small businesses. It counts 1,000 notes per minute and, with the denomination pre-selected, shows the total value of the stack.

Ultraviolet (UV) and magnetic (MG) detection check every note, infrared (IR) sensors catch double, chained and half notes, and the large LCD turns red when a suspect note is found so it is easy to spot. Batch, add and self-test functions and software updates through the RS-232 port keep it ready for everyday use with most world currencies.

Key Features

  • Automatic start, stop and clear
  • UV and magnetic (MG) counterfeit detection
  • IR double-note, chained-note and half-note detection
  • Total value calculation by pre-selected denomination
  • LCD turns red when a suspect note is detected
  • Batch, add and self-examination functions
  • Software updates through the RS-232 port
  • Suitable for most world currencies

Looking for a currency counting machine in Abu Dhabi or Dubai? Share the model, quantity and currencies you need. We will confirm the specifications and availability.

Downloads – Catalogue & User Manual

Technical Specifications

Hopper capacity
200 notes
Stacker capacity
200 notes
Counting speed
1,000 notes/min
Note size
50 × 110 – 90 × 180 mm
Note thickness
0.075–0.15 mm
Counting display
4-digit LCD
Batch display
3-digit LCD
Counterfeit detection
UV, MG, IR (double note)
Power supply
AC 220V ±10% 50Hz / AC 110V ±10% 60Hz
Power consumption
≤ 80W
Dimensions
290 × 240 × 175 mm
Net weight
5.3 kg
Certifications
CE, FCC, RoHS, ISO 9001
